WINDOWS

ELVIAL W60BS SI²

Both a new building project and the upgrade of an old one has the same fundamental requirements. Performance and design. ELVIAL created ELVIAL W60BS SI² as an aluminium system solution that fits ideally both the system replacement and upgrade in existing buildings combining the performance you need with the design you choose.
W67 HI².ML_BS
6
0

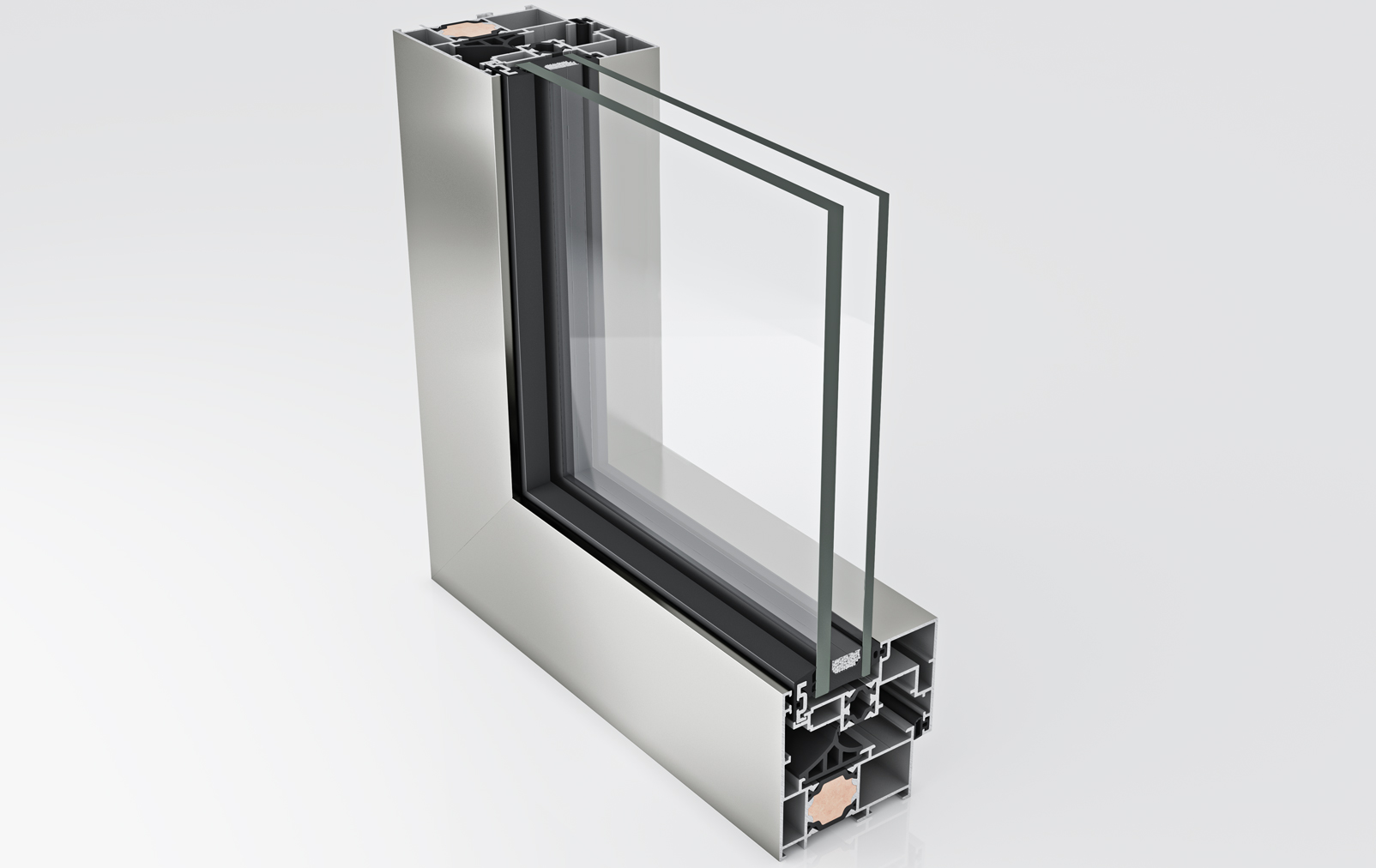

Elvial - THE DESIGN
THE DESIGN

ELVIAL W60BS SI² has all the merits of the architectural aluminium systems that sport a blind sash. Minimal lines and reliability create beautiful and accommodating spaces come rain or shine.

ATTENTION TO DETAIL

MAXIMUM VIEW

The Blind Sash edition offers a seen surface of only 69mm from the outside.

CONCEALED GASKETS

The gaskets of this aluminium profile are fitted to go undetected around the perimeter of the glazing zone. The aluminium system is durable and effective plus very elegant.

EXTRA FEATURES

Form follows function, they said. We glorified form by concealing the functional components.

Hinges to open or tilt that go undetected.

Handles so sophisticated that render grace to industrial design.
Elvial - THE DESIGN
THE TECHNOLOGY

The climate in the Mediterranean is so beautiful, songs have been written about it. The region enjoys many sunny days during the year. In cases this does not happen the ELVIAL W60 SI².ML_BS will make sure you don’t feel it. In your space it will always be spring.

The Thermal Insulation

You can feel it on a cold night. You'll appreciate it on a hot day. You'll love this when you run your budget.
  • ELVIAL I² INNOVATIVE INSULATION TECHNOLOGY

    The Innovation, ELVIAL I² Technology, is applied on all fixed frames of the system. This way, an extra insulation zone is created in the middle chamber of the profile, boosting the system's energy performance.
    Learn more about ELVIAL I² Innovation.
  • INSULATING BARS UP TO 22MM

    Wide insulating bars of up to 22mm, are applied to all system profiles, offering high thermal insulation levels and extra sense of amenity.

The Advanced Sealing System

We have developed the Advanced Sealing System to water-proof any construction. Vulcanization and assembly render all parts of the window impermeable.
  • OPTIMAL 2-LEVEL WATERPROOFING

    Oprimal 2-level waterproofing with specially designed EPDM gaskets.
  • EPDM GASKET CORNERS

    Special, vulcanized EPDM corners ensuring maximum sealing at edge corners of the window, even at extreme weather conditions.
  • DRAINAGE CHANNELS

    All system profiles are equipped with special drainage channels to prevent the water flow to the inner part of the window.

Durability For A Life Time

It's details like this that fulfill the highest requirements in terms of durability. As time puts this profile to its test, you will enjoy its endurance and benefits.
  • SASH DESIGN

    We implement an external joint corner to achieve the best possible durability and longevity for the sash.
  • JOINT CORNERS WITH RECESSES

    The joint corners have specially designed recesses to fasten the hinge pins and absorb the weight of the glazing. This safeguards the smooth operation and functionality of the window for a lifetime.
ENERGY LEVELS
Different conditions in environment and climate demand tailored solutions. There are two energy level variables to this product so you can devise the best answer to any demand.
Uf ≥ 3.1 W/m²K
Uf ≥ 3.1 W/m²K
Uf ≥ 3.0 W/m²K
Uf ≥ 3.0 W/m²K
ENERGY LEVELS
Different conditions in environment and climate demand tailored solutions. There are two energy level variables to this product so you can devise the best answer to any demand.
Uf ≥ 3.1 W/m²K
Uf ≥ 3.1 W/m²K
Uf ≥ 3.0 W/m²K
Uf ≥ 3.0 W/m²K
Design
System Depth
60mm
Min Face Height
Frame-Sash
69mm
Min Face Width
Middle Mullion
93mm
PROPERTIES
Max Sash Height
2.500mm
Max Sash Width
1.000mm
Max Sash Weight
100kg
Max Glass thickness
24mm
Uf Value (≥)
2.5 W/m²K
Air Permeability
Class 4
Water Tightness
E1050
Wind Load Resistance
C5/B5
SINGLE SASH FIXED WINDOW

SINGLE SASH OPENING WINDOW

SINGLE SASH TILT & TURN WINDOW

DOUBLE SASH OPENING WINDOW

DOUBLE SASH TILT & TURN WINDOW

DOUBLE SASH TILT & TURN WINDOW WITH FIXED
SINGLE SASH FIXED WINDOW WITH SKYLIGHT
GET ACCESS
Are your Interested for more technical information about this product? Contact us and gain access to Technical Catalogue, DWG, BIM, Test Reports.
