ELVIAL SL33

ELVIAL SL33 CLASSIC

The ELVIAL SL33 CLASSIC aluminium system was created to expertly fulfill to the fundamentals. It is the system that ensures insulation and offers safety, while its aesthetics exceed the standards of its category. It is the ideal solution for those wishing to replace their windows in the frame of government funding programmes. Different requirements demand differentiated solutions. ELVIAL has them.
ELVIAL SL33 CLASSIC
3
3
THE DESIGN
THE DESIGN

The requirements the ELVIAL SL33 CLASSIC system will need to fulfill present a somewhat particular challenge as they usually concern buildings of traditional aesthetic and construction standards. This is why it provides a wide range of typologies and four variations of mullion width.

ATTENTION TO DETAIL

UNLIMITED VIEW

The ELVIAL SL33 CLASSIC bears one more feature that will alter your space's vibe and atmosphere: a narrow, reinforced mullion width of just 25mm. Replace your windows with the ELVIAL SL33 CLASSIC. You will enjoy a better visual access to your exteriors and more light.

GHOST GLAZING GASKETS

The appliance of Ghost glazing gaskets minimizes the visible facet and renders the gaskets practically invisible. Once more, aesthetic prevails and functionality is not compromised.

ENJOY QUIET SUMMER NIGHTS

The combination of the ELVIAL SL33 CLASSIC with a flyscreen will tend to a restful sleep.
UNLIMITED VIEW
GHOST GLAZING GASKETS GHOST GLAZING GASKETS
ENJOY QUIET SUMMER NIGHTS

EXTRA FEATURES

INNER HANDLE

Handles are so sophisticated that render a unique style to any architectural design. Function and appearance are in perfect harmony.

OUTER FLUSH PULL

The profile’s flush pulls on the outside are barely there. The frame looks even and sleek from every angle. Function and form are in perfect harmony.
INNER HANDLE
OUTER FLUSH PULL

THE OPTIONS

SUCCESSIVE CONSTRUCTIONS

INWALL

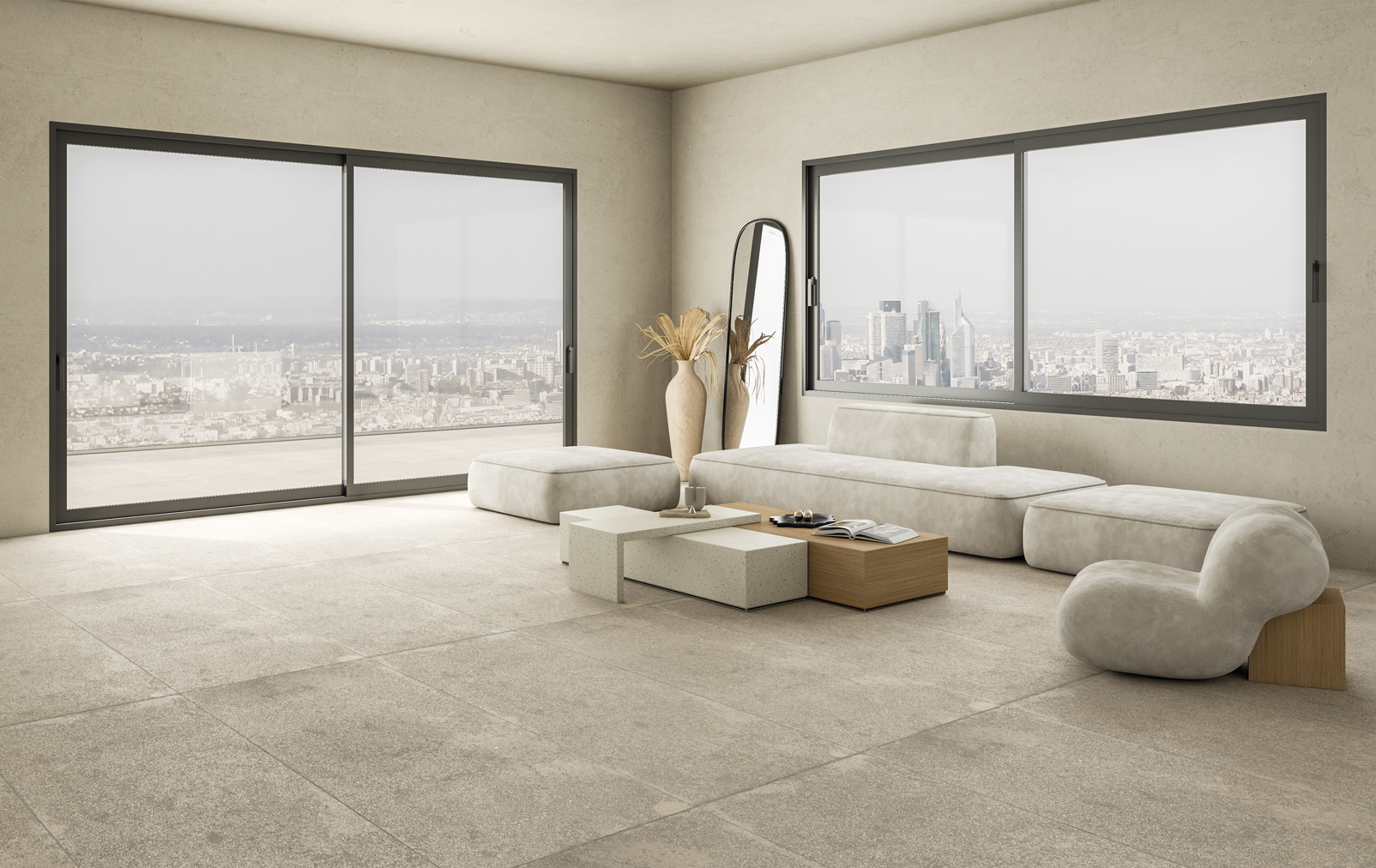

2-SASH

SUCCESSIVE CONSTRUCTIONS

In successive sliding systems, the sashes slide each other and offer typologies to help you complete small or large scale projects.
2-SASH WITH FLYSCREEN

SUCCESSIVE CONSTRUCTIONS

In successive sliding systems, the sashes slide each other and offer typologies to help you complete small or large scale projects.

2-SASH

2-SASH WITH FLYSCREEN

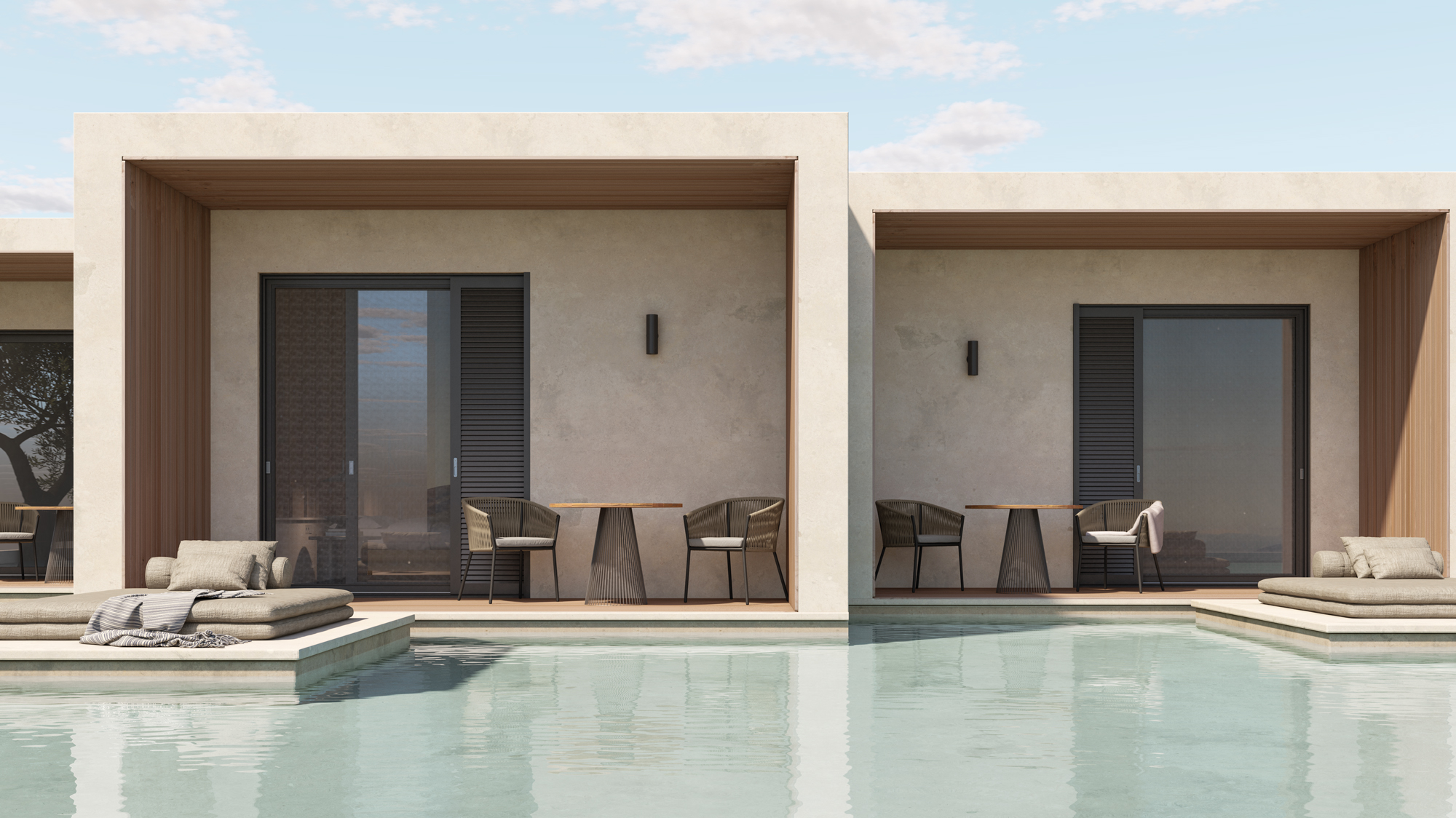

1-SASH INWALL WITH FLYSCREEN AND SHUTTER

INWALL

With an inwall construction you can save space by combining flyscreen and shutters but also create the union between the interior and exterior environment without visual restrictions.
2-SASH INWALL MEETING STILE FLYSCREEN AND SHUTTER

INWALL

With an inwall construction you can save space by combining flyscreen and shutters but also create the union between the interior and exterior environment without visual restrictions.

1-SASH INWALL WITH FLYSCREEN AND SHUTTER

2-SASH INWALL MEETING STILE FLYSCREEN AND SHUTTER

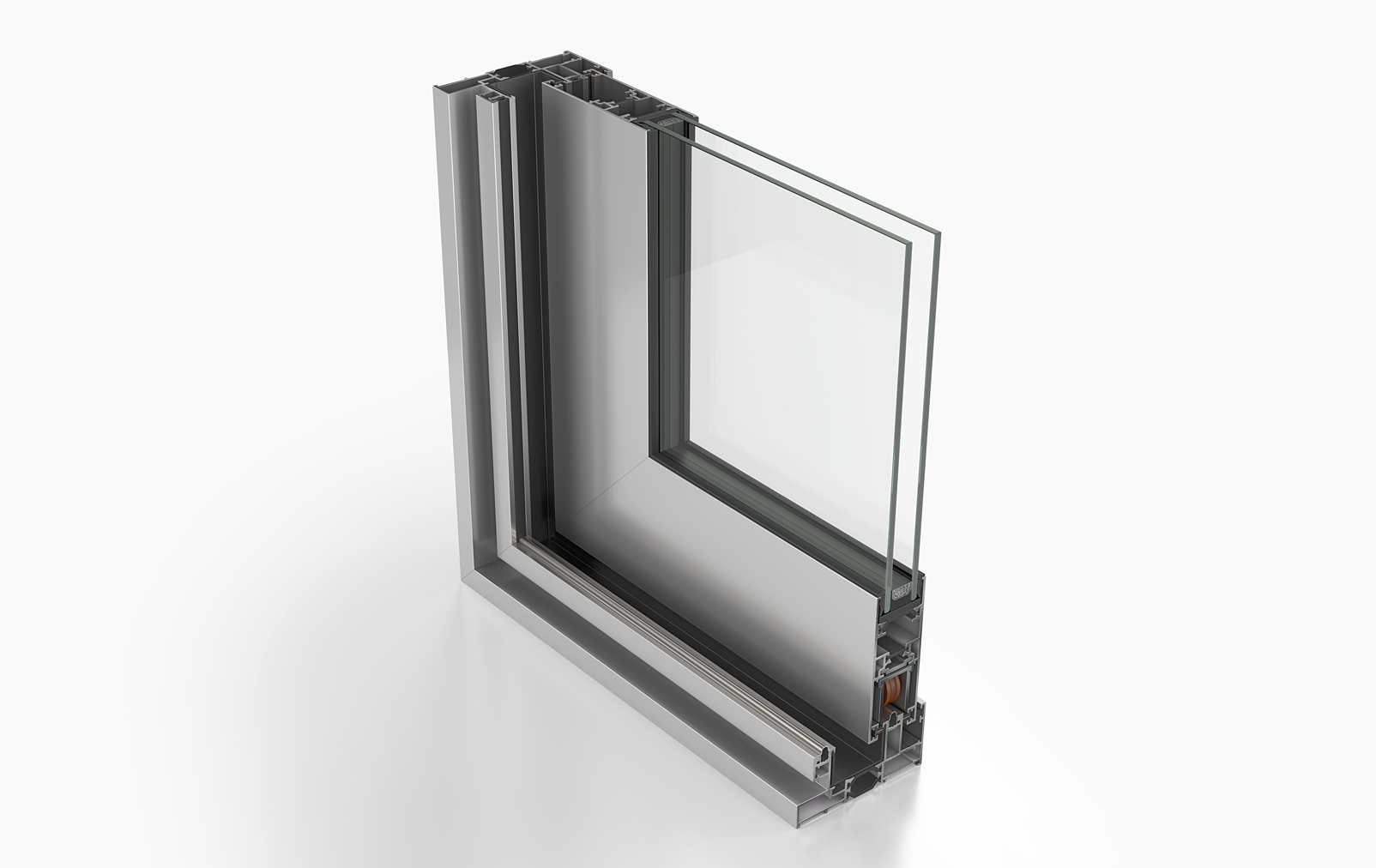

THE TECHNOLOGY

This aluminium system is a good deal that serves great value. It ensure your space will be insulated, safe and pleasant for years to come.

THERMAL INSULATION

Τhe weather is becoming unpredictable. Replacing your windows with the aluminium system ELVIAL SL33 CLASSIC will offer the very welcome predictably stable protection and efficiency.

  • UP TO 28mm INSULATING BARS

    Insulating bars with 25% glass reinforcement of 24mm in tracks and 28mm sashes are applied, offering thermal insulation and rigidity.

  • CUSTOMIZED INSULATING BARS

    Insulating bars are set both in the central zone and the middle mullion, offering the necessary energy efficiency for each project.

ΤΗΕ SEALING

ELVIAL sliding systems are designed to offer the efficiency you need and the style you desire. In the ELVIAL SL33 CLASSIC, watertightness is another fundamental functional element that we have ensured.

BRUSHES WITH SEALING MEMBRANE

The glazing sashes features special brushes with a sealing membrane that ensure efficient protection from wind and water.

DURABILITY FOR A LIFE TIME

Τhis aluminium system is going to prove itself in the years to come. Its durability and efficiency will certify so.

SMOOTH ROLLING

Stainless steel rail, which ensures the impeccable functionality of the construction.
Design
Sash Depth
33mm
Visible Height
Standard Edition
sash 88mm
sash 75mm
119mm
106mm
Middle Mullion Width
Successive
sash 88mm
sash 75mm
sash 53mm
sash 25mm
92mm
79mm
56mm
25mm
Middle Mullion Width
Fixed T
56mm
Meeting Stile Construction Width
Meeting Stile
sash 88mm
sash 75mm
194mm
168mm
Properties
Max Sash Height
2400mm
Max Sash Width
1300mm
Max Sash Weight
120kg
Max Glass Thickness
24mm
Uf Value (≥)
3.5 W/m²K
Uw Value (=)
1.75 W/m²K
Air Permeability
Class 3
Watertightness
5A
Resistance to Wind Load
C3/B3
Operating Forces
Class 1
2-Sash
2-Sash with fixed part
2-Sash with flyscreen
2-Sash with flyscreen - glazing combination
3-Sash
4-Sash meeting stile
4-Sash meeting stile with flyscreen
1-Sash inwall
1-Sash inwall with flyscreen
1-Sash inwall with shutter
1-Sash inwall with flyscreen and shutter
2-Sash inwall meeting stile
2-Sash inwall meeting stile with flyscreen
2-Sash inwall meeting stile with shutter
2-Sash inwall meeting stile with flyscreen and shutter

This aluminium sliding system is the ideal solution for replacing older frames, offering an impressive range of typologies with four different overlapping configurations. Designed to adapt with precision to classical aesthetics and existing construction standards, it significantly enhances natural light, delivering a clean, minimal result.

The ghost gaskets remain virtually invisible, reinforcing visual clarity, while outstanding thermal insulation and enhanced security transform any existing building into a modern environment of comfort and high energy efficiency.
