ELVIAL SL33

ELVIAL SL33_MD

Τhe ELVIAL SL33_MD aluminium system has been upgraded. It's refreshed design and upgraded features render it a well crafted solution, ideal for those wishing to replace their windows in the frame of energy saving government funded programmes.
ELVIAL SL33_MD
3
3
THE DESIGN
THE DESIGN

Α wide variety of typologies, four variations of mullion width and a special anti-distortion reinforcement make sure the ELVIAL SL33_MD system offers solid, quality solutions to diverse renovation and window replacement projects.

ATTENTION TO DETAILS

UNLIMITED VIEW

The ELVIAL SL33_MD bears one more feature that will alter your space's vibe and atmosphere: a narrow, reinforced mullion width of just 25mm. Replace your windows with the ELVIAL SL33_MD. You will enjoy a better visual access to your exteriors and more light.

GHOST GLAZING GASKETS

The appliance of Ghost glazing gaskets minimizes the visible facet and renders the gaskets practically invisible. Once more, aesthetic prevails and functionality is not compromised.

ENJOY QUIET SUMMER NIGHTS

The combination of the ELVIAL SL33_MD with a flyscreen will tend to a restful sleep.
UNLIMITED VIEW
GHOST GLAZING GASKETS GHOST GLAZING GASKETS
ENJOY QUIET SUMMER NIGHTS

EXTRA FEATURES

INNER HANDLE

Handles are so sophisticated that render a unique style to any architectural design. Function and appearance are in perfect harmony.

OUTER FLUSH PULL

The profile’s flush pulls on the outside are barely there. The frame looks even and sleek from every angle. Function and form are in perfect harmony.

SPECIAL DESIGNED FLUSH PULL

This flyscreen flush pull by ELVIAL, designed for effortless operation, enhances both functionality and aesthetics of the final result.
INNER HANDLE
OUTER FLUSH PULL
SPECIAL DESIGNED FLUSH PULL

THE OPTIONS

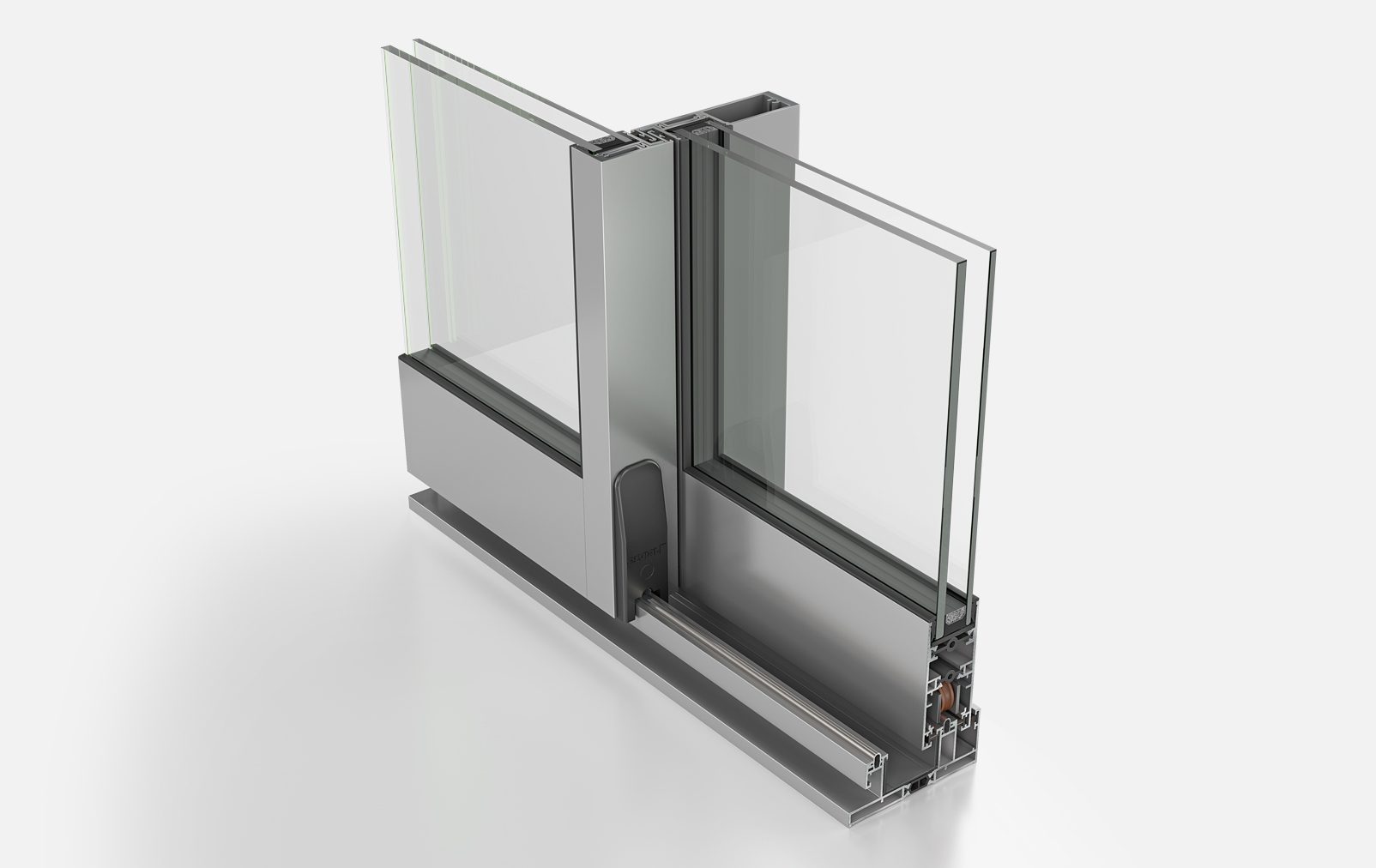

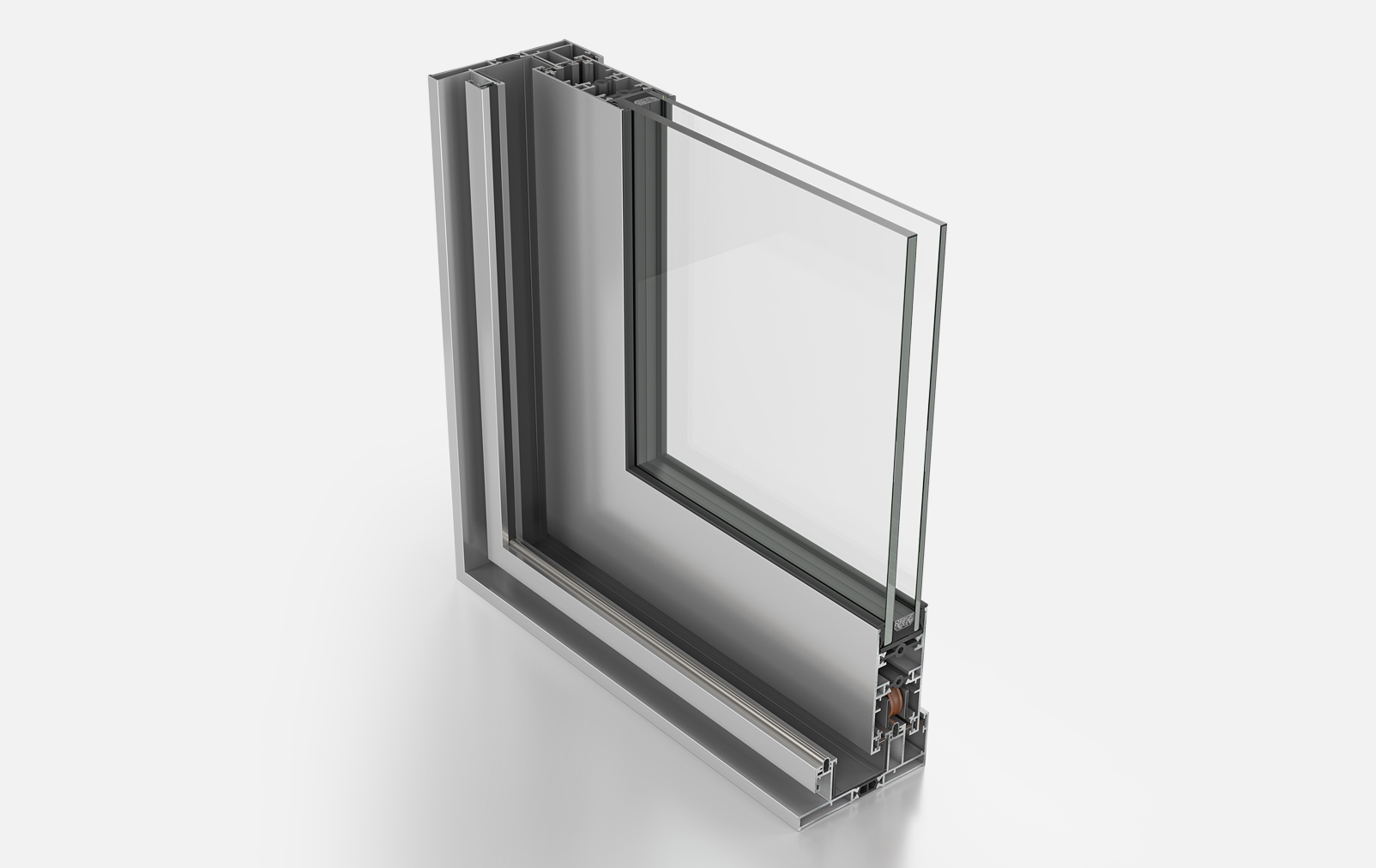

SUCCESSIVE CONSTRUCTIONS

INWALL

2-SASH

SUCCESSIVE CONSTRUCTIONS

In successive sliding systems, the sashes slide each other and offer typologies to help you complete small or large scale projects.
2-SASH WITH FLYSCREEN

SUCCESSIVE CONSTRUCTIONS

In successive sliding systems, the sashes slide each other and offer typologies to help you complete small or large scale projects.

2-SASH

2-SASH WITH FLYSCREEN

1-SASH INWALL WITH FLYSCREEN AND SHUTTER

INWALL

With an inwall construction you can save space by combining flyscreen and shutters but also create the union between the interior and exterior environment without visual restrictions.
2-SASH INWALL MEETING STILE FLYSCREEN AND SHUTTER

INWALL

With an inwall construction you can save space by combining flyscreen and shutters but also create the union between the interior and exterior environment without visual restrictions.

1-SASH INWALL WITH FLYSCREEN AND SHUTTER

2-SASH INWALL MEETING STILE FLYSCREEN AND SHUTTER

THE TECHNOLOGY

This aluminum system is a good deal that serves great value. It ensure your space will be insulated, safe and pleasant for years to come.

THERMAL INSULATION

Τhe weather is becoming unpredictable. Replacing your windows with the aluminium system ELVIAL SL33_MD will offer the very welcome predictably stable protection and efficiency.

  • UP TO 28mm INSULATING BARS

    Insulating bars with 25% glass reinforcement of 20mm in tracks and 28mm in sashes are applied, offering thermal insulation and rigidity.

  • CUSTOMIZED INSULATING BARS

    Insulating bars are set in the middle mullion, offering the necessary energy efficiency for each project.

ΤΗΕ SEALING

ELVIAL sliding systems are designed to offer the efficiency you need and the style you desire. In the ELVIAL SL33_MD, watertightness is another fundamental functional element that we have ensured.

BRUSHES WITH SEALING MEMBRANE

The glazing sashes features special brushes with a sealing membrane that ensure efficient protection from wind and water.

DURABILITY FOR A LIFE TIME

Τhis aluminium system is going to prove itself in the years to come. Its durability and efficiency will certify so.

SMOOTH ROLLING

Stainless steel rail, which ensures the impeccable functionality of the construction.

EXCELLENT DURABILITY

Α narrower mullion width yet an undisputably durable system. It is possible because of the mullion's special reinforcement. We made sure that 1in combine a refined design with the necessary durability.
Design
Sash Depth
33mm
Visible Height
Standard Edition
sash 88mm
sash 75mm
113mm
100mm
Middle Mullion Width
Successive
sash 88mm
sash 75mm
sash 53mm
sash 25mm
92mm
79mm
56mm
25mm
Meeting Stile Construction Width
Meeting Stile
sash 88mm
sash 75mm
194mm
168mm
Properties
Max Sash Height
2400mm
Max Sash Width
1300mm
Max Sash Weight
120kg
Max Glass Thickness
24mm
Uf Value (≥)
3.8 W/m²K
Uw Value (=)
1.72 W/m²K
2-Sash
2-Sash with flyscreen
2-Sash with flyscreen - glazing combination
4-Sash meeting stile
4-Sash meeting stile with flyscreen
1-Sash inwall with flyscreen
1-Sash inwall with shutter
1-Sash inwall with flyscreen and shutter
2-Sash inwall meeting stile with flyscreen
2-Sash inwall meeting stile with shutter
2-Sash inwall meeting stile with flyscreen and shutter

This aluminium sliding system represents a leading solution for energy upgrading, combining high thermal insulation with a specially reinforced structure that minimises deformation and ensures long-term durability. The everyday user experience is redefined through ergonomic handles and the integrated flush pull, delivering both refined aesthetics and practical functionality.

Featuring large glass surfaces that flood the space with natural light, along with the flexibility for overlapping or pocket configurations, the system responds seamlessly to any architectural challenge, offering uncompromised security and reliability.
